Electric globe valve



1. Used since the pressure-tight seal structure, the higher the pressure on the media, the better sealing performance.
2. Valve seat embedded valve body, valve seat and valve seal surface using carbide-cobalt for surfacing, and anti - abrasion performance and grinding.
3. Electrical devices mainly by the private motor, reducer, torque control body, which will control agencies, operating agencies at the scene, hand (Xinhua) dynamic switching agencies, and other components. The valve closed position by the control limit torque, torque limit institutional role protection. Apart the spot valve operation can be extended to remote operation.
4. Pipeline valves can be installed in any location, starting down for the working medium (reflux).
5. Path to the public that the introduction of greater than 100 mm dual-valve structure, sealed reliable, long service life.
6. Electric valve should be closed vertical installation, stem upward.

Major parts materials
NO Name materials
J961Y-20 J961Y-25 J961Y-32 J961Y-P5410V J961Y-P5414V J961Y-P5420V
1 body
Carbon Steel
Cr-Mo steel vanadium
2 seat
Carbon Steel
Cr-Mo steel vanadium
3 disc
Carbon Steel
Cr-Mo steel vanadium
4 Seal
Enhanced Flexible Graphite
Enhanced Flexible Graphite
5
Limit ring
Carbon Steel
Cr-Mo steel vanadium
6
Stent
Carbon Steel
Carbon Steel
7 steam
Nitriding Steel
Nitriding Steel

Pipe size
type/DN DN65 DN80 DN100 DN125 DN150

J961Y-20

J961Y-P5410V

897 1088 13310 16812 19414

J961Y-25

J961Y-P5414V

899 10811 13314 16816 19420

J961Y-32

J961Y-P5420V

8911 10814 13316 16822 19425

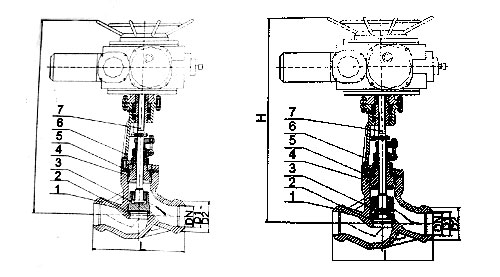

The main form factor size and connectivity

PNMPa

DN(mm)

L D1 D2 H

J961Y-20

J961Y-P5410V

65 280 75 92 655
80 368 92 111 1005
100 457 113 137 1045
125 533 144 172 1080
150 610 166 198 1130

J961Y-25

J961Y-P5414V

65 280 71 92 655
80 368 86 111 1005
100 457 105 137 1045
125 533 136 172 1080
150 610 154 198 1130

J961Y-32

J961Y-P5420V

65 280 67 92 655
80 368 80 111 1005
100 457 101 137 1045
125 533 124 172 1080
150 610 144 198 1130

Electrical Device Selection Table
Caliber / pressure
DENSO Model
Nominal torque
N.m
Manufacturers
DN65/PN202532

Z45

DZW45

450

450

Changzhou
Yangzhou
DN65/P5410V14V17V

Z45

DZW45

450

450

Changzhou
Yangzhou
DN80/PN202532

Z60

DZW60

600

600

Changzhou
Yangzhou
DN80/P5410V14V17V

Z60

DZW60

600

600

Changzhou
Yangzhou
DN100/PN202532

Z60

DZW60

600

600

Changzhou
Yangzhou
DN100/P5410V14V17V

Z60

DZW60

600

600

Changzhou
Yangzhou
DN125/PN202532

Z60

DZW60

600

600

Changzhou
Yangzhou
DN125/P5410V14V17V

Z60

DZW60

600

600

Changzhou
Yangzhou
DN150/PN202532

Z60

DZW60

600

600

Changzhou
Yangzhou
DN150/P5410V14V17V

Z60

DZW60

600

600

Changzhou
Yangzhou
